SCRAM GPS

SCRAM GPS Bracelet Strap Replacement

Use this procedure to replace the strap on a SCRAM GPS Bracelet.

What you will need:

  • SCRAM GPS Bracelet
  • T10 screwdriver
  • Replacement straps

Procedure

  1. Use a T10 screwdriver to remove the two screws holding the strap in place and remove old strap.

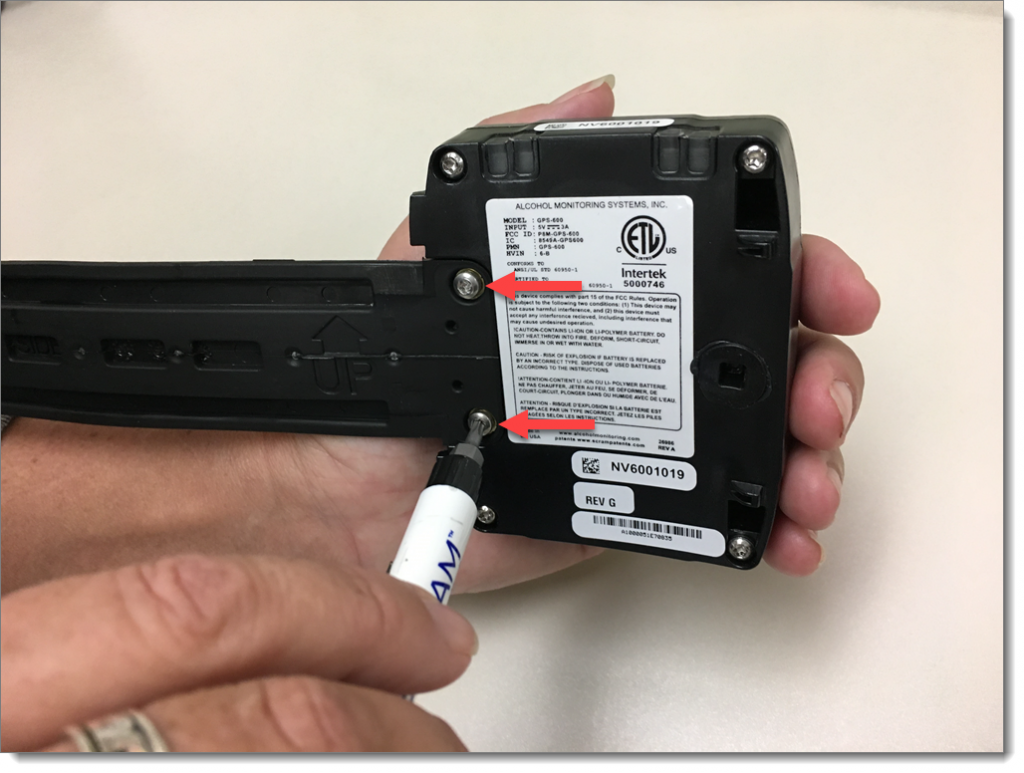

    A T 10 screwdriver removing screws from the bracelet strap
  2. Position the new strap on the bracelet with the word “UP” aligned with the words on the bracelet sticker.

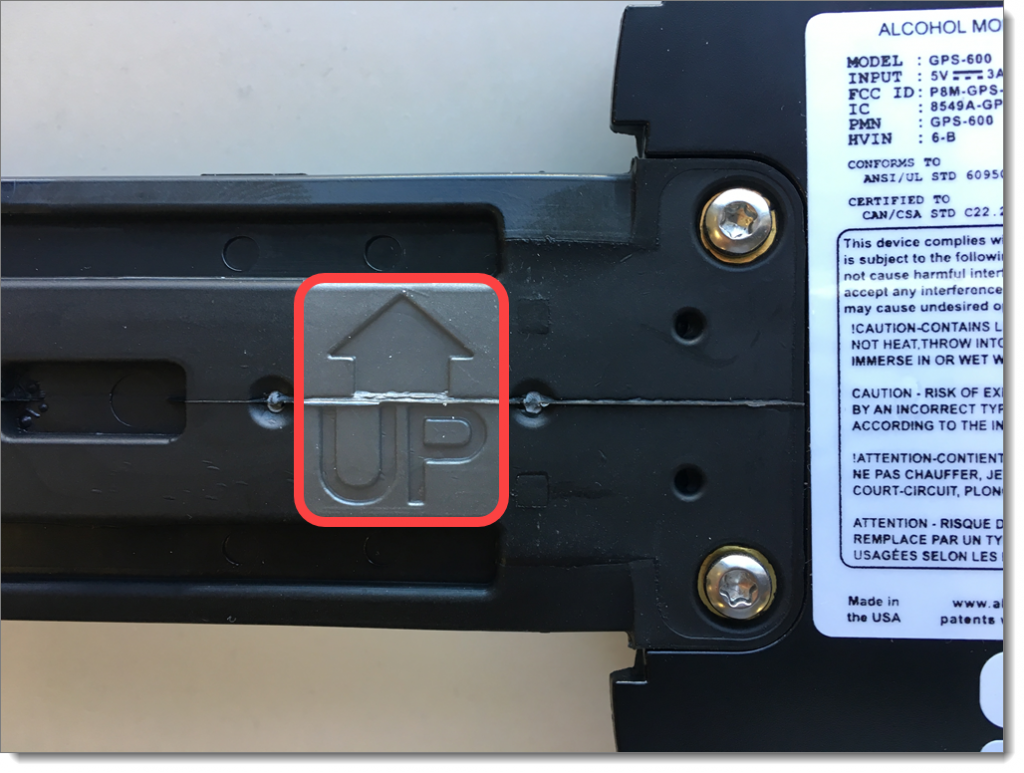

    Inside of GPS strap showing the word up and an arrow pointing up
  3. Place the two screws in the screw holes, and tighten the screws to 3.5 lb/in (4.0 kg/cm or 0.4 nm) of torque using the T10 screwdriver. DO NOT OVER-TIGHTEN.

Information

 To prevent unnecessary alerts from being generated, always keep the strap attached when storing or charging the SCRAM GPS Bracelet.
